New 4 solenoid actuators dc volt 18VDC 4550-0001-01 hp

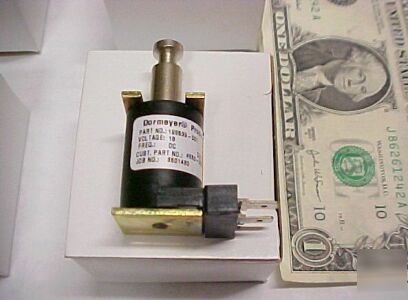

This batch of solenoids was purchased at an industrial liquidation last year. They are brand new in the original factory cases, and each unit is boxed individually. The coils are fully encapsulated in polymer, rather than being tape-wrapped like cheaper varieties. They are probably waterproof, although you might need to do some testing before outfitting your scuba gear with them. These ought to be good for something, and we have almost a "production" quantity available.
Duty: ID (presumably means intermittent duty)
Cust. Part Number 4550-0001-01
Height (including actuator pin): 1.875" (1-7/8")
Height (excluding actuator pin): 1.155"
Length (including terminals): 1.375" (1-3/8")
Length (excluding terminals): 1.050"
Width (opposite terminals): .872"
Solenoid coil outside diameter: .720"
Solenoid coil inside diameter: .320"
Actuator pin overall length: 1.736"
Actuator pin length (outside of solenoid bracket): .706"
Actuator pin groove diameter: .187" (3/16")
Mounting bracket thickness: .062"
Mounting bracket holes: #6-32 threads, spaced .675" OC (on centers)
Terminals: Standard male 3/16" spade terminals
