Tektronix tek 11A33 diff comparator

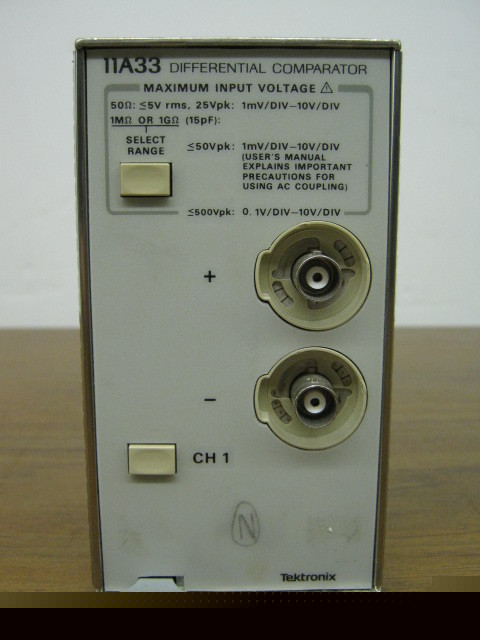

Tektronix Tek 11A33 Diff Comparator
The 11A33 Differential Comparator plug-in is a single channel differential amplifier with high common-mode rejection ratio and fast overdrive recovery from very large signals. As a differential amplifier, common mode input voltage range is +/- 8 V at 1mV/div. As a comparator, the built-in comparison voltage (Vc) is used to measure the fine structure of very large signals, such as the settling time of a digital-to-analog converter, with unprecedented accuracy and resolution. The unit can be used in the 11301, 11302, 11401, and 11402 Oscilloscope mainframes.
