New cohu 1322-1000 1/2" sensitive color camera

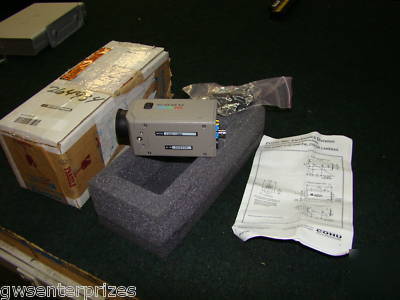

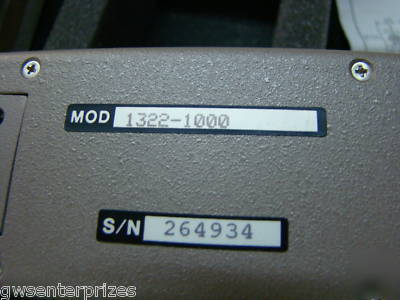

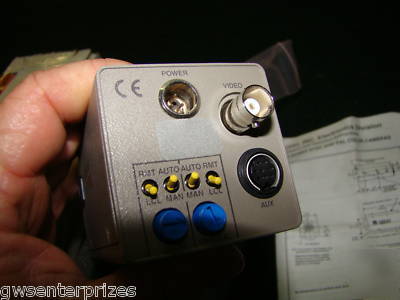

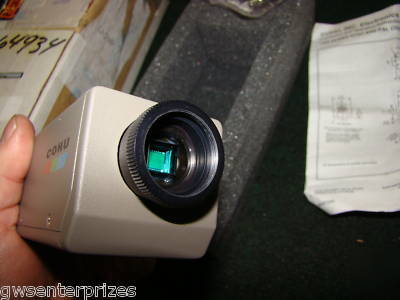

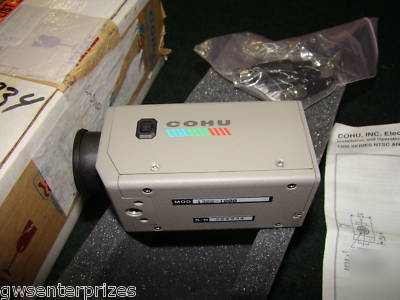

NEW IN BOX, Cohu 1322-1000 1/2" Sensitive Integrating Color Camera
here is some online info we found about this model camera
Imager: Interline transfer CCD with matrix filter, Image Area: 6.4 x 4.8 mm (1/2" format)
Picture Elements: NTSC: 768 (H) x 494 (V)
Resolution: NTSC: 460 horizontal TV lines, 350 vertical TV lines;
Sensitivity @ 3200K faceplate illumination:
6.5 lux at full video, AGC off; 0.3 lux at 80% video, AGC on; 0.08 lux at 30% video,
AGC: 0-20 dB , S/N Ratio (AGC off): 48 dB
Integration: Externally controllable 1/60 sec to 16 sec
Shutter: Internal DIP switch, 1/60 to 1/10,000, 8 steps;
Color Balance: Automatic, through-the-lens type, less than 10 IRE units unbalance from 2850K to 5800K; local/remote, manual white balance
Synchronization: NTSC crystal , Power Requirements: 12 VDC / 0.5A
