Okamoto linear 612 ball way precision surface grin
Okamoto Linear 612 Ball Way Precision Surface Grin

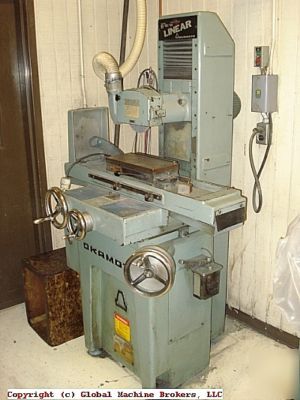

OKAMOTO Model LINEAR 6 . 12 / 14 Precision Hand Feed Ball Way Table Toolroom Surface Grinder, with Heavy Cast Iron Construction and Base, High Column
Table Working Surface 6.2" x 14.5"
Table Travels ~ Longitudinal 15"
Handwheel Graduations ~ Cross 0.001" / .100"/Rev
~ Vertical 0.0002" / .050"/Rev
Spindle Motor 1.5 HP Direct Drive ( 1 Kw / 3450 RPM )
Spindle Electrics 208 - 220 / 3 / 60
Net Weight Approximately 2,000 lbs.
* Wheel Guard with Hindged front cover
* Table End Dust / Splash Guard ( left side )
* 6" x 12" Walker Ceramax Mag. Chuck
* Large Chrome Downfeed Handwheel under Saddle
* Yaskawa Precision Balanced Spindle Type Motor 1.5 HP
* Showa One Shot Lubrication
$50 Skidding Fee Free to Load on Flat Bed.
