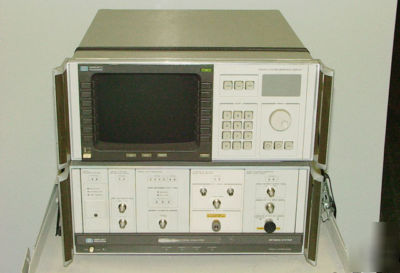

Agilent hp 71209A 26.5 ghz spectrum analyzer 70910A 001
HP AGILENT 71209A 26.5 GHZ SPECTRUM ANALYZER 70910A 001
The Agilent 71209A spectrum analyzer is a wide band, very sensitive receiver. It works on the principle of "super-heterodyne receiver" to convert higher frequencies (normally ranging up to several 10s of GHz) to measurable quantities. The received frequency spectrum is slowly swept through a range of pre-selected frequencies, converting the selected frequency to a measurable DC level (usually logarithmic scale), and displaying the same on the CRT of the Agilent 71209A. The CRT displays received signal strength (y-axis) against frequency ( x-axis).
Some applications for the Agilent 71209A Spectrum Analyzers include:
* Site Monitoring: Verify that the frequency and signal strength of your transmitter is accurate.
* Interference: Before a system is installed you use a Agilent 71209A spectrum analyzer to verify that the frequencies (you plan to use) are not occupied or if the presence of a very strong signal will interfere with your new setup. Interference can be created by a number of different situations.
* Microwave or Satellite Antenna Alignment
* Component Characterization
* Frequency range 100 Hz to 26.5 GHz
* Resolution bandwidth: 10 Hz to 3 MHz in a 1, 3, 10, and 10% increments
* Video Bandwidth: 3 Hz to 3 MHz in a 1, 3, and 10 increments
* Optimum dynamic range: 99 dBm second order; 96 dBm third order
* Phase noise: -108 dBc/Hz at 10 kHz offset
* Input Connector: 3.5 mm (f)
This system is composed of the following:
* 70206A - Systems Graphic Display
* 70001A - Modular Mainframe
* 70902A - IF Section Res BW 10 Hz to 300 kHz
* 70903A - IF Section Res BW 10 Hz to 300 kHz
* 70910A - RF Section Range 100 Hz to 26.5 GHz
* 70310A - Precision Frequency Reference
* 001 = Wide Bandwith RF Section (Replaces 70909A with 70910A module)
* 200 = No 70004A display mainframe
* 310 = Include 70310A Precision Frequency Reference
