DUINO328 serial board - arduino compatible ATMEGA328
Please see more information on
or more details, schematic, blink example, manual, datasheet in CD.
Arduino is an open-source based on a simple I/O board and a development environment
that implements the Processing/Wiring language. Arduino can be used to develop
stand-alone interactive objects or can be connected to software on your computer.

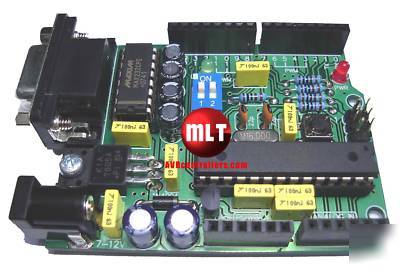

This Duino328 Serial Board (Assembled Board includes ATmega328) use MAX232 drive
the RS232 signal interface with your computer and includes the ATmega328
microcontroller with Diecimila bootloader and includes Standard Arduino Pinout will be
developed with other board and includes 78L33 Voltage Regulator 3.3V for your other
development and includes DIP switch SPST to disable auto reset and Green LED(D13) and
includes resistors have tolerance 1% and includes 100nF Polyester Capacitors.
Note: ATmega328 microcontroller is MCU AVR Atmel 32K FLASH 28-PDIP, Program memory size 32K x 8, RAM size 2K x 8, Number of I/O = 23, Speed 20MHz, Oscillator type = Internal, Program memory type = FLASH, EEPROM size = 1K x 8, Core processor = AVR, Data converters = A/D 6x10b, Core size 8 bit, Operating temperature -40 C ~ 85 C, Connectivity = I2C, SPI, UART/USART, Peripherals = Brown-out Detect/Reset, POR, PWM, WDT, Voltage Supply (Vcc/Vdd) = 1.8V ~ 5.5 V
- ATSTK600-TQFP32-ND STK600 SOCKET/ADAPTER32-TQFP.
- ATSTK600-ND DEV KIT FOR AVR/AVR32.
- ATAVRDRAGON-ND KIT DRAGON 32KB FLASH MEM AVR.
- ATAVRISP2-ND PROGRAMMER AVR IN SYSTEM.
1. Duino328 Serial Board (Assembled Board) includes ATmega328, Standard Arduino Pinout.
2. Free CD (Schematic, Blink example, Manual, Datasheet, Installation Program).
=> Contact us if you need to purchase more than one Duino328 Serial Board.
Arduino Blink PhotobucketPhotobucketPhotobucket
