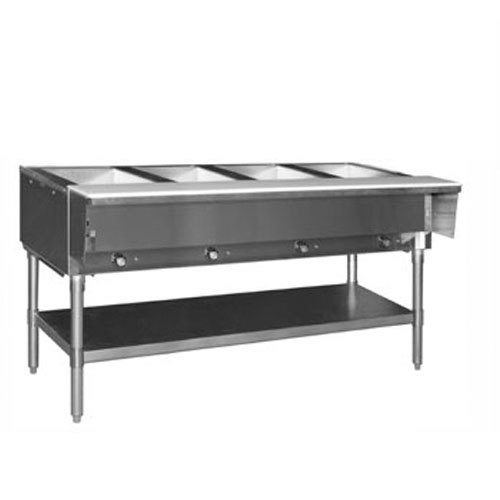

Eagle HT4-lp hot food table, 4WELLS, 63 1/2" length, lp
Hot Food Table, 4Wells, 63 1/2" Length, LP Gas
Hot Food Table, LP Gas, 63-1/2" L, (4) 12" x 20" (dry) wells with burner controls in recessed panel, s/s top with 8" poly cutting board, galvanized undershelf & tubular legs, adjustable feet, 14,000 BTU
* Individual controls for peak performance
* High-output jet burners for efficient operation
* Adaptable for wet application
* Recessed controls for improved protection and safety
* Body and top constructed of highly polished 22 gauge 430 series stainless steel
* Top features die-stamped beaded openings measuring 12 3/32" x 20 3/32"
* A poly cutting board 8" wide and 1/2" thick is mounted on stainless steel
* brackets located on control side of unit
* Legs are 1 5/8" O.D. galvanized tubing fitted with non-marking plastic feet
* Under each top opening is a heat compartment with a die-stamped 8" deep, heavy gauge galvanized liner
* Each compartment is insulated on all four sides and bottom with 1" thick fiberglass, or equal, having a thermal conductivity of 0.27 or less
* Gas heat units Each compartment features an individual burner rated at 3,500 BTU designed for use with natural gas or propane gas as specified Each burner is controlled by a High-Medium-Low adjustable gas valve with adjustable pilot light
* A removable galvanized steel radiation plate is also provided in each compartment and a gas pressure regulator is furnished with all units
* Undershelf is galvanized steel
