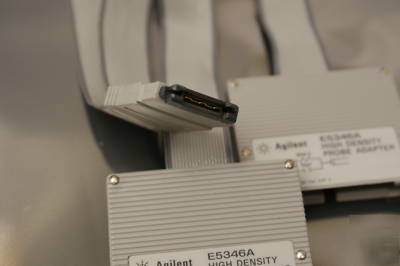

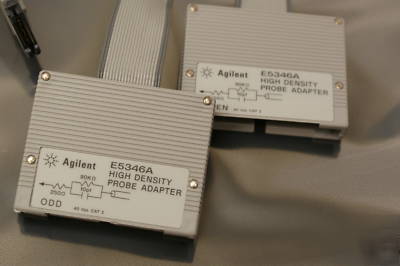

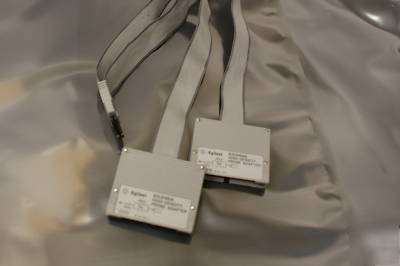

Hp agilent E5346A h density probe adapter mictor 16750A
The 38-pin probe and adapter cable provide a convenient way to connect two Agilent Technologies logic analyzer probe cables to a small area of a target system. The Agilent Technologies E5346A probe has RCR isolation networks in the cable end that connects to the 38-pin AMP MICTOR (
Matched Impedance ConnecTOR) connector.
34 channels: 32 single-ended Data. 2 single-ended Clock
Small, 3.0pf, equivalent load capacitance
Capable of data rates up to 600Mb/s (maximum rate dependent on analyzer used
500 mV p-p minimum signal amplitude
Small connector is easy to incorporate into your design Agilent number 1252-7431 or AMP number 2-767004-2
Logic Analyzer connection of 38 pin with 34 channels.
***If you require more than shown, just ask. I may have them. thanks!***
