Min order 2PC, avanex c-band fiber athermal interleaver
50/100GHz C-band interleaver. Passive module, not need TEC. Demux-type. Avanex Model: PNP2100DCZT01P6
at http:// /store/product.php?productid=19012&cat=390&page=1
100GHz-to-50GHz C-band demux interleaver. Athermal package, so temperature controller is not required. With LC/PC connectors. Made in Oct. 2008. Bookham and Avanex Merge Into a New company - Oclaro, see htm link below for Oclaro general specification. Due to its wide and flat passband feature, it should be also OK as mux-type interleaver.

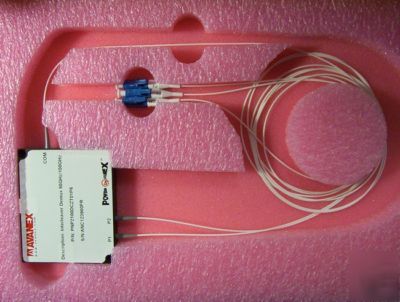

Condition: New in original product box with actual test sheet. Sample tested very good with OSA at 0.1nm RBW under broadband source at our lab, see spectrum at last two photos(commont port is input, port 2 is output), the passband looks flat-shape (Note: absolute wavelength of OSA is not fully calibrated). Estimated insertion loss in our test is about 1dB or slightly higher. P1 port output spectrum also looks OK in our test.
