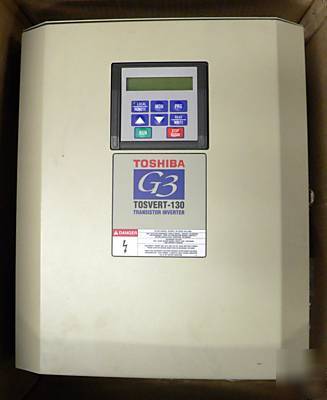

Toshiba G3 20HP inverter drive VT130G3U4220
Used Surplus in Very Good Condition
Estimated Retail Price $7177.00
Constant Torque, Variable Torque, Auto Torque Boost, Auto Torque Boost with Automatic Energy Saving Mode, Vector Control, Vector Control with Automatic Energy Saving Mode
100% Continuous, 120% for One Minute
Keypad Control, 0-10V, +/-10V, +/-5V, 4-20mA, Binary Input, Motorized Potentiometer Input
Analog Input +/- 0.2% of the Maximum Output Frequency, Digital Input +/- 0.01% of the Maximum Output Frequency
0.01 Hz Operation Panel, 0.1 Hz Analog Input, 10-12 bit A-D Converter
True Torque Control Mode (0.1-0.5%) / PWM Mode (3%)
(8) Discrete Input Terminals Programmable to 54 Functions
(1) 4-20mA, (1) 0-10V or 1-10KOHM Potentiometer Connections, (1) +/-10V or +/- 5V
(3) Output Terminals Programmable to 64 Functions, Form C Contacts Rated 250V AC 2amps Inductive
(2) 4-20mA Outputs Programmable to 17 Functions
Fault Codes Include: Overcurrent, Overvoltage, Inverter Overheat, Load-side Short Circuit, Ground Fault, ASD Overload, EEPROM Error, RAM Error, ROM Error, CPU Error, Communications Error, Auto-Tuning Error, Emergency Stop, Undervoltage, Overtorque, Open Output Phase, Motor Overload, Low Operating Current, Option PCB Error, Gate Array Error
ASD will smoothly catch a freewheeling motor.
Temperature: -10-50 C, 14-122 F, Humidity 95% Non-Condensing
Electronic Operator Interface (EOI)
LCD EOI (Liquid Crystal Display/Electronic Operator Interface)
2 x 20 Backlit Multi-language LCD Display
Remote/Local (Green), DC Bus Charge Indication (Red)
Remote Mount up to 1000 feet with Optional Kit
Please visit our store for a greater selection of drives or give us a call at (***)-481-3250.
