Air slide, meto-fer, 25MM bore x 200MM stroke

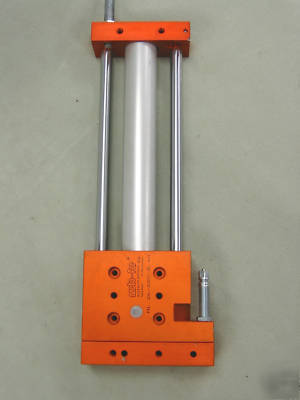

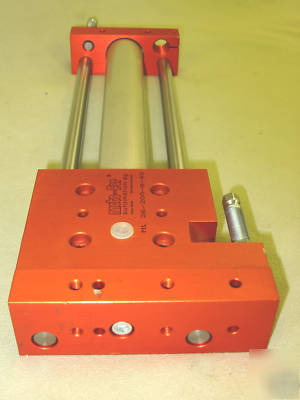

AIR SLIDE BY METO-FER AUTOMATION SWISS MADE
200MM STROKE THERE ARE ADJUSTABLE STOPS ON THE TOP AND BOTTOM, THEY ARE ABOUT 1" LONG. SO THE STROKE CAN BE CUT DOWN TO ABOUT 150MM
THERE ARE THREADED HOLES FOR SHOCK ABSORBERS BUT IT DOES NOT COME WITH ANY
THE GUIDE RODS ARE 12MM DIA. AND RIDE ON LINEAR BALL BEARINGS
THE MOUNTING PLATE ON THE END OF THE ROD IS 20MM X 37.5MM X 116MM AND HAS 2 TAPPED HOLES AND 2 PIN HOLES IN THE FRONT, TOP AND BOTTOM
THE CYLINDER BODY HAS 4 TAPPED HOLE AND 2 PIN HOLES FOR MOUNTING ON EACH SIDE
TOTAL OVERALL LENGHT WHEN CLOSED IS 12 3/4" NOT INCLUDING THE ADJUSTABLE STOP THAT ADDS 1 3/4", WIDE 4 9/16", THICK 1 1/2"
