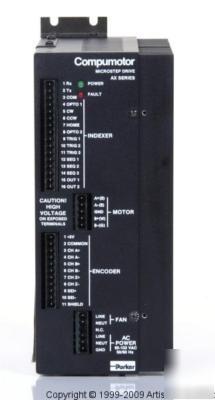

Compumotor axh stepper drive
The AX Drive provides the following features:
* System is available in the low-powered version
* Drive resolution is 12,800 step/revolution
* Includes a full featured RS-232C indexer with a subset of the X Series command language
* Up to 8 drvies can be daisy-chained on a single RS-232C port
* 2,000 characters of non-volatile memory can store up to 7 motion programs
* Nine optically isolated inputs: End-of travel (2), Home, Triggers (3), Sequence (3)
* Two optically isolated programmable outputs
* User-selectable micro-stepping waveforms for optimal smoothness
* Automatic power-up motion sequence execution
* Motion sequence selction via RS-232 or external switches
* Sequence upload, download, automatic verify
* Incremental encoder interface is standard
* 23, 34, and 42 frame motors available with torques from 50 to 2,400 oz-in. 10 foot motor cables standard
* The system offers high output voltage (170VDC) operation for optimum high-speed performance
* 95-135VAC, 50/60Hz input power
* System is protected from shor-circuit (phase-to-phase, but not phase-to-ground), brownout, and over-temperature
* Microprocessor-controlled micro-stepping provides smooth operation over a wide range of speeds, and imporved mid-frequency performance
