Dual bag, dump station system

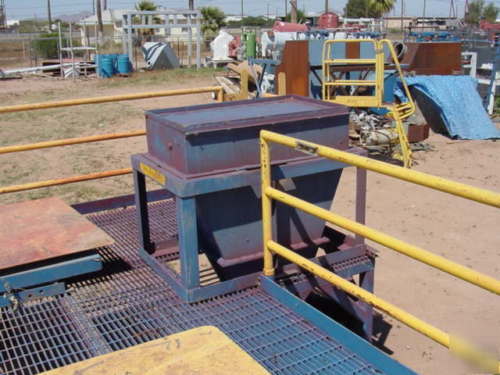

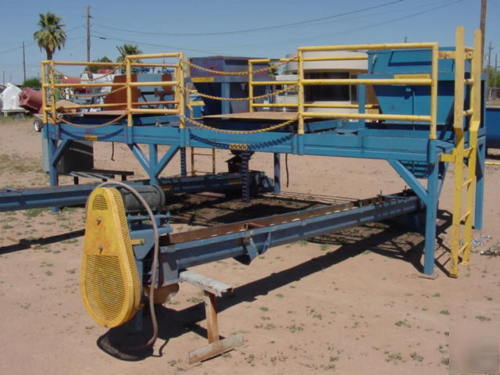

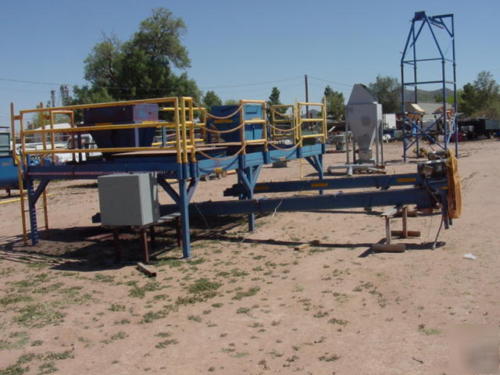

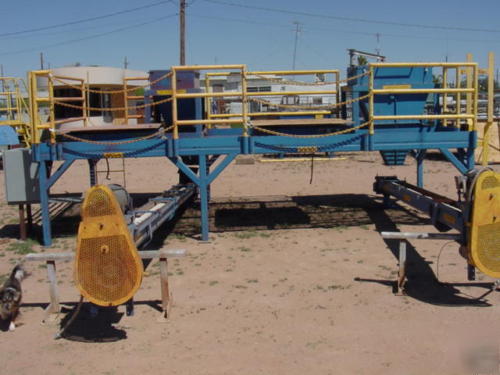

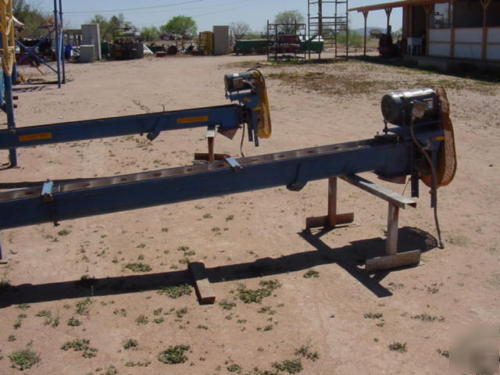

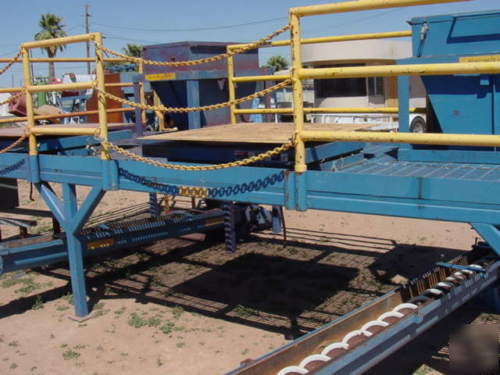

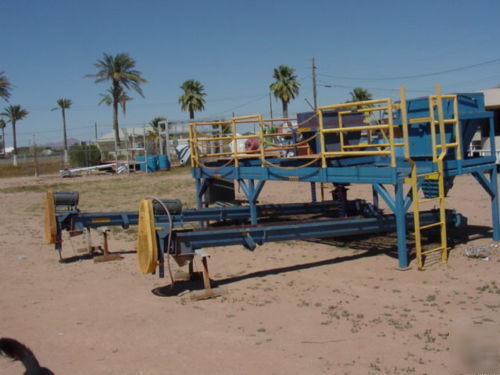

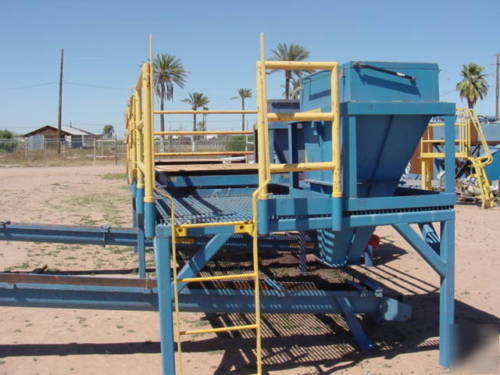

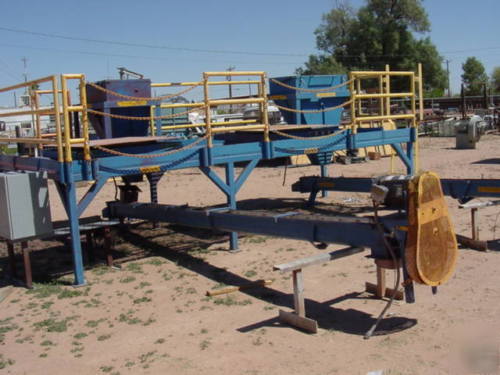

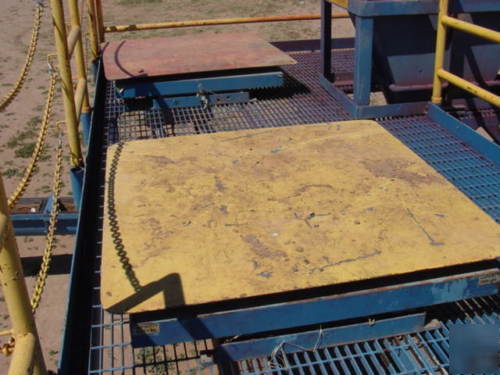

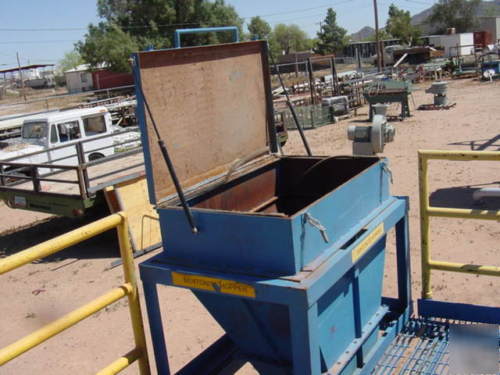

THIS IS A HEAVY DUTY DUMP STATION. THE FRAME MATERIALS IS 3 SQUARE TUBE HEAVY WALL, THE DECK IS BAR GRATE, THE HANDRAILS ALL ARE REMOVABLE AND FABRICATED FROM 1 SCH 40 PIPE. PALLET ENTRY TO DECK HAS 3 CHAINS FOR SAFETY. IT HAS TWO DUMP HOPPERS THAT HAVE APP. 20 CUBIC FOOT OF CAPACITY. IT HAS TWO CONVEYORS FOR DISCHARGE. ONE IS A 6 CARBON STEEL TROUGH WITH A 6 CARBON STEEL SCREW IT HAS THE HEAVY DUTY 2 SHAFT AND 3/16 THICK FLIGHTS. IT HAS UHM FLIGHT EDGING ON THE FLIGHTS THIS IS FOR TROUGH CLEAN OUT. THE CONVEYOR LENGTH IS 14 . THE DRIVE MOTOR IS A 2HP TEFC MOTOR. IT HAS A SHAFT MOUNTED BROWNING GEARBOX. THE OTHER CONVEYOR IS A STAINLESS STEEL 6 CONVEYOR WITH TROUGH, SCREW, ALL INTERNAL PARTS MADE FROM STAINLESS STEEL. THIS CONVEYOR IS 19 LONG. THE DRIVE MOTOR IS A 3 HP MOTOR TEFC. IT HAS A BROWNING SHAFT MOUNTED GEARBOX. THE SCREW IS A HEAVY DUTY 2 SHAFT, WITH 3/16 FLIGHTS. THE FLIGHTS HAVE UHMW EDGING FOR TROUGH CLEANOUT. THE PLATFORM HAS TWO HYDRAULIC SOUTHGATE PALLET LIFTS WITH CAROUSEL TOPS. THE PLATFORM IS 17 LONG WITH ONE END 6 6 WIDE AND THE OTHER IS 9 4 .
