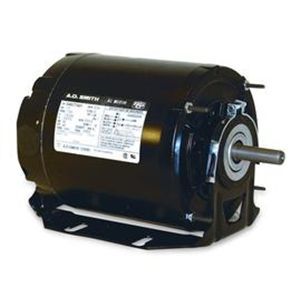

New a.o. smith electric motor BF2054
* Split-Phase Air-Over Motors
* High-efficiency motors feature extended studs for mounting fan guard on shaft endshield.
* UL Recognized and CSA Certified..
* Uses: Exhaust fans, air circulators, and other air-over fan applications. Open motors are for use in clean, dry, nonhazardous locations. Enclosed motors are for use in dusty, dirty, nonhazardous locations.
* Body dia.: 48 frame, 5 5/8"; 56 frame, 6 1/2"
Please research safety location information, proper thermal protection, and other motor selection information before using this motor.Split-Phase Motor, Open Air-Over, 1/2 HP, 1725 RPM, Number of Speeds 1, 115/208-230 Volts, 7.2/3.6-3.6 Full Load Amps, 48 NEMA Frame, Service Factor 1.25, 60 Hz, Cradle/Stud Mounting, Ball Bearings, Auto Thermal Protection, Shaft Dia 1/2 In, Shaft Length 1 1/2 In, CW/CCW Rotation, Ambient 40 C, Length Less Shaft 8 7/16 In, Stud Pattern 3 5/8 x 3 5/8 In, Insulation Class B, Body Diameter 5 5/8 In, Ring to Ring Center 7 15/16 In, Resilient Ring Diameter 2 1/2 "
* UL Recognized and CSA Certified. AO Smith OTEB2054A is a replacement for OEM motors used in Triangle belt-drive exhaust fans.
* Rotation: CW/CCW, except CWLE AO Smith OTEB2054A
Please research safety location information, proper thermal protection, and other motor selection information before using this motor.Split-Phase Motor, Open Air-Over, 1/2 HP, 1725 RPM, Number of Speeds 1, 115/208-230 Volts, 7.2/3.6-3.6 Full Load Amps, 48 NEMA Frame, Service Factor 1.25, 60 Hz, Cradle/Stud Mounting, Ball Bearings, Auto Thermal Protection, Shaft Dia 1/2 In, Shaft Length 1 1/2 In, CW/CCW Rotation, Ambient 40 C, Length Less Shaft 8 7/16 In, Stud Pattern 3 5/8 x 3 5/8 In, Insulation Class B, Body Diameter 5 5/8 In, Ring to Ring Center 7 15/16 In, Resilient Ring Diameter 2 1/2 InItemHVAC Motor Motor TypeSplit-Phase EnclosureOpen Air-Over HP1/2 Speed1 Nameplate RPM1725 Voltage115/208-230 Hz60 Phase1 Full Load Amps7.2/3.6-3.6 NEMA/IEC Frame48 MountingCradle/Stud Thermal ProtectionAuto Insulation ClassB Service Factor1.25 BearingsBall Ambient (C)40 RotationCW/CCW Shaft Dia. (In.)1/2 Shaft Length (In.)1 1/2 Length Less Shaft (In.)8 7/16 Body Dia. (In.)5 5/8 Stud Pattern (In.)3 5/8 x 3 5/8 Resilient Ring Dia. (In.)2 1/2 Ring to Ring Center (In.)7 15/16 Nominal Efficiency66.0 Agency ComplianceUL Component Recognized, CSA Certified Mfr. Stock No.BF2054 Includes5/8" Dia Shaft Bushing Weight17.00
