Osterwalder/feintool dbl-tog action fine blanking press

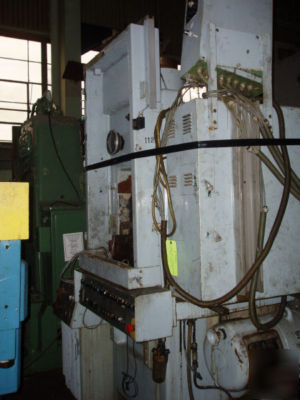

50/80 TON OSTERWALDER/FEINTOOL DOUBLE-TOGGLE ACTION
New 1973, Serial No. 27-73-1196, Model GKP-F50/80,
Blanking Force, Tonnage Capacity....... 50 TONS
Total Tonnage Capacity, (Aux Functions) 80 TONS
Fine Blanking Table Hydr Stroke, Max... 0.433"
Ejector Hydraulic Stroke, Maximum...... 0.315"
Tool Shut Height, Range................ 6.88" to 10.03"
Clearance Between Front Columns........ 17.72"
Clearance Between Side Columns......... 7.87"
Top Table Vertical Adjustment.......... 3.15"
Top Table Dimensions, L x W............ 16.53" x 16.53"
Lower Table Dimensions, L x W.......... 18.11" x 16.92"
Stock Thickness Permissable, Maximum... 0.196"
Stock Width Permissable, Maximum....... 7.08"
Feed Pitch Per Press Stroke, Maximum... 7.08"
Overall Height......................... 8'6"
Weight, Approximately.................. 9000 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $19,500.00
