Veris industries hawkeye 722 analog current sensor

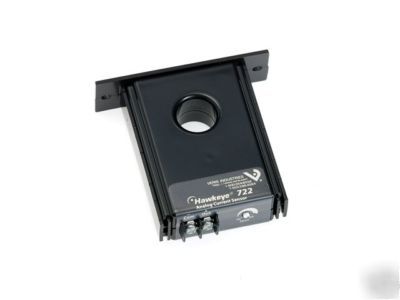

Hawkeye Model H722 0-5 VDC Analog Current Sensor
1. The current sensor shall be self powered
2. The current sensor shall have two adjustable ranges of 0-10 and 0-60A with a full scale output of 5 VDC
3. The current sensor shall be accurate to
2.0% of the reading over a temperature range of -15 to 60 C
4. The current sensor shall be isolated to 600 VAC rms
5. The current sensor shall have an adjustable mounting bracket for installation flexibility
6. The current sensor output shall be 0-5 VDC
7. The current sensor shall be a solid core type with a hole size of 0.75 in diameter
8. The current sensor dimensions shall be (LxWxH) 3.125 x 2.15 x1.00
9. The current sensor shall be model H722
