Atmel extension dip board for avr isp avrisp programmer

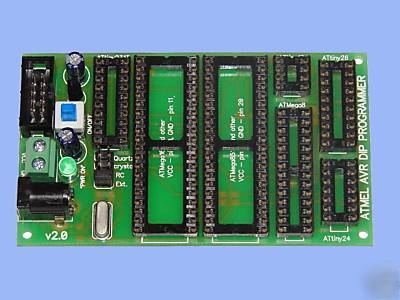

Product photo (click for view in large resolution)
Click for view in large resolution "AVR DIP Programmer"
Jumper selection for clocking from quartz crystal
Jumper selection for clocking from RC circuit
Jumper selection for clocking from external clock
Click for view in large resolution Using of "AVR DIP Programmer" with "AVR ISP v3.2" for programming of AVR controller
AVR DIP Programmer - extension module for programming ATMEL AVR controllers in DIL(DIP) case
Module AVR DIP PROGRAMMER is extension to widely known programmers AVR910, AVRISP, STK200, AVR ISP v3.2 (recommended) and other. Iit allows programming ATMEL AVR microcontrollers in DIL (DIP) case.
The module is intended for the developers in which arrangements on a PCB there is no connector ISP, does not remain free pins of the controller for connecting of the ISP interface, or these pins cannot be used on what or other reason. The module supports all ATMEL AVR microcontrollers in DIP case, having ISP interface
For programming controllers it is necessary external programmer: AVR910, AVRISP, STK200, AVR ISP v3.2 (recommended) or other. External programmer it is connected to the AVR DIP PROGRAMMER by means of a standard 10-pin ISP connector
Pinout of 10-pin connector (see photo)
2. Power supply +5 (input/output)
3. Input for external clocking (if needed)
The AVR DIP PROGRAMMER allows to choose type of clocking of the controller (external clocking, external RC circuit or the crystal-stabilized oscillator of 8 MHz), that enables to program any controller irrespective of his FUSE bits. The choice is carried out by adjustment of jumpers on corresponding places.
With programmer AVRISP v3.2 (see photo) an external power supply it it is not necessary: +5V delivered through a ISP cable from programmer.
However with another type of programmer there is a necessity in an external power supply. For this purpose on a PCB of the module AVR DIP PROGRAMMER there are 2 types of power supply connectors: standard power supply connector with diameter of the central contact electrode 2,1mm (+ a feed on the central contact electrode, - a feed on the external contact electrode) and the terminal-block with 2 pins (polarity of voltage is specified on a PCB). The module ATMEL AVR DIP PROGRAMMER have the built in voltage stabilizer +5V. A range of input power supply voltage +6V.. +15V
For more comfortable work with the module ATMEL AVR DIP PROGRAMMER added button, which is switching-off a power, and a green LED for the status of POWER ( PWR ON ) .
