Danfoss AB024C coil for solenoid valves 24V ( qty: 5 )

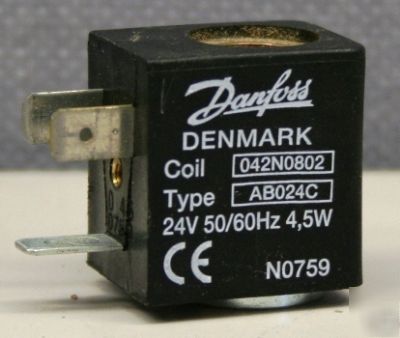

Danfoss AB024C Coil for Solenoid Valves 24V 50/60Hz 4.5W Code: 042N0802 (5)
$13.57 each (OEM 08/07/08 MQF)
* Supply Voltage: 24, 50/60Hz
* Power Consumption: 4.5W AC / 5W DC
* Solenoid Valve Type: 2/2-Way Compact EV220A; 3/2-Way Compact EV310A
* Winding of class H insulated wire molded in the coil body
* Ambient temperature: Up to +50 C
* All usual ac and dc voltages
* IP00 version with 6.3 0.88mm spade connectors
* IP65 version with mounted cable plug
* Design: in accordance with VDE 0580
* Power Consumption (cut-in): ac: 9.5VA
* Power Consumption (holding): ac: 6.3VA 4.5W / dc: 5W
* Insulation of coil windings: Class H according to IEC 85
* Connection: Spade connectors, 6.3 0.8mm
* Enclosure, IEC529: IP00 with spade connector / IP65 with cable plug
* Ambient Temperature: Max +50 C
