> New 5C collet chuck indexer horizontal & vertical all
New 5C collet chuck indexer horizontal & vertical all

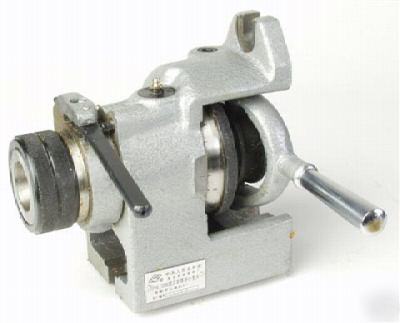

5C Collet Chuck Horizontal & Vertical Collet Indexer
Rapid opening and closing lever collet closer with a leverage ratio of 100 to 1.
Convenient ratchet mounted on front of spindle provides rapid indexing.
Index plate has 24 index locations (15 increments). Any of them may be masked off for greater variety of applications.
Threaded spindle is hardened and ground (2-1/4 - 8 TPI)
Dividing Spindle Concentricity 0.0002"
Cyindrical Center Bore (per1") Concentricity 0.0008"
Spindle Center Line Parallism 0.0008" Center Slot To Dividing Spindle Concentricity 0.0008"
Lateral Offset Of Center Slot To Dividing Spindle 0.0008"
