Schlafli precigrind 2000 wire guided centerless grinder
(1) USED - SCHLAFLI (SCHLAEFLI) PRECIGRIND 2000 WIRE GUIDED CENTERLESS GRINDING MACHINE*
Serial No. M-01/1252-1 New 2001
Work Diameter Capacity - Maximum .315"
Bore Diameter Range - Maximum .236"
(For Guiding Wire) - Minimum .004"
Maximum Part or Chain of Parts Length 35-1/2"
Grinding Wheel Dimensions 1A1 7" x 3/4"-2-3/4" x 1-3/4"
Approximate Dimensions 75" x 32" x 79" H

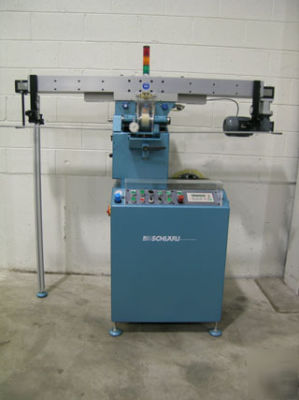

The Precigrind 2000 is a centerless grinding machine designed to achieve high
concentricity accuracy and tight diameter tolerances. The parts to be ground
must have an accurate bore through which a precision wire is pulled. The parts
threaded onto this guiding wire form a processing chain of parts up to 35-1/2"
in length. The wire is mounted onto the oscillating axis of the machine. The

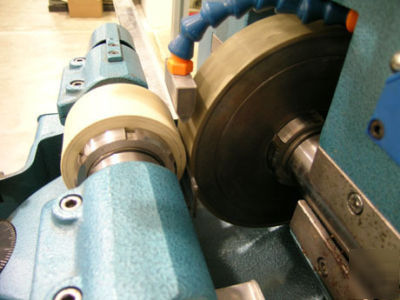

grinding process is based on a standard centerless grinding machine.
