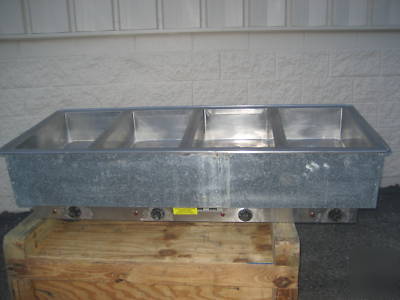

Used atlas 4 comp drop in elec food warmer steam table
USED ATLAS 4 COMP DROP IN ELECTRIC
GUARANTEED WORKING OR YOUR MONEY BACK!!!!
Cutout Size: 22-1/4" X 55-1/2"
Here is the manufacturer's technical information, the online link is at:
http:// /electric-hot-food-drop.atm-wihd4.0.7.htm#gallery
The WIH series hot pan is an electrically heated drop-in serving unit that provides the convenience on individually controlled hot food wells, designed for standard 12" x 20" steam table pans. The pan construction enables the unit to be used either wet or dry and can be specified with drains or a complete drain manifold. The entire hot is efficiently insulated and provided with a factory applied gasket so that it can be installed in the finest wood fixtures without marring the counter top. All controls are pre - wired to a single cord and plug
Efficiently insulated to retain heat - protects fixtures and saves energy
Individual thermostat controls - the operator can control the temperature of each well separately
Factory applied gasket - makes installation a snap and seals units to the counter top, thus eliminating seepage
Accommodates standard 12" x 20" pans, or fractional size pans
NSF certified; UL recognized
Individual drain and valve for each well
Top : Constructed of 18 gauge, type 304 stainless steel, die stamped with a raised perimeter bead. There shall be a solid vinyl gasket under the beaded edge to form a seal to the counter top, thus preventing seepage or marring of the counter top.
Hot Food Wells: Individual hot food wells shall be 18 gauge type 304 stainless steel, one piece construction, all welded, ground and polished to a uniform finish. All corners are coved with a minimum 1/4" radius. Each well is provided with an 850 watt heating element (1000 watt on the WIH-1).
Insulation : The pan is fully insulated with high density polystyrene, 1" thick on all sides, 2" thick on the bottom and enclosed with a 22 gauge galvanized steel outer liner. The entire unit is removable without the use of tools.
Electrical: The unit is provided with an individual thermostat control with a pilot light for each well. All heating elements and controls are pre- wired, and a 6' long, 3-wire cord and plug is provided, extending from the control box located under the unit, on operator's left. Available for single phase power only.
Hot Food Drop-In Well Unit, electric, individual pan design, wet or dry type, four-pan size for 12" x 20" pan, control panel w/individual thermostatic controls, s/s top & wells, galvanized outer liner, with fiberglass insulation
The pan size of this item is (4) 12"W X 20"D X 6"H. The flange is 24"W X 41 3/4"D.
The WIH series hot pan is an electrically heated drop-in serving unit that provides the conveniece of individually controlled hot food wells, designed for standard 12"W X 20"D steam table pans. The pan construction enables the unit to be used either wet or dry.
The entire hot pan is efficiently insulated and provided with a factory applied gasket so that it can be installed in the finest wood fixtures, without marring the counter top. All controls are prewired to a single cord and plug.
This item has many features and benefits including :
* Fully insulated to retain heat - protects fixtures and saves energy.
* Factory applied gasket - makes installation a snap and seals units to the counter tio, thus eliminationg seepage.
* Can be used with standard 12"W X 20"D pans, or fractional size pans with the use of adaptor bars.
* NSF certified, UL and CSA recognized
Feel free to email us with any questions regarding this item.
