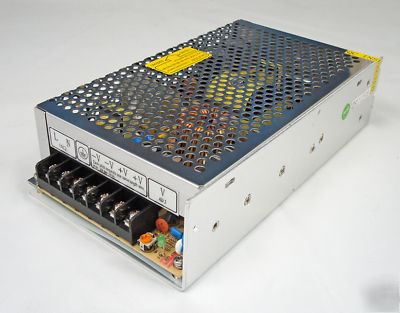

240 watt 12V / 18A single output power supply heng fu
New to CircuitSpecialists.com is this 240W 12V/18A Highly Reliable, Universal AC input/full range single output power supply. They have the approval of UL and CE and come 100% full load burn-in tested and are protected with overload/over and voltage/short circuit. Also included is a 2 year manufacturer s warranty. Dimensions: 7.96 x 4.4 x 2.0"
* Complies with RoHS Directive
* AC Input Voltage Range: 85-132/ 170-264VAC Selected by Switch
* Inrush Current: Cold Start, 20A/115V, 40A/230V
* Input Leakage Current: <0.7mA/230V
* Line Regulation (Full Load): < 0.5%
* Output Voltage Adj. Range: 10%
* Output Overload Protection: 110-130% Constant Current, Auto Recovery
* Output Over Voltage Protection: 115-150%
* Withstand Voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
* Rise Time: 50ms @full load (typical)
* Hold Up Time: 20ms @full load (typical)
* Operating temp.& humidity: -10 C to 50 C (14 F - 122 F), 20%-93%RH (non-condensing)
* Storage temp.& humidity: -20 C to 85 C (-4 F - 185 F), 20%-93%RH (non-condensing)
* Safety Standards: GB4943, UL60950, EN60950
* EMC Standards: GB9254, EN55022 classA
* Cooling Method: Convection
View Mechanical Drawing (in mm) (PDF)
For technical support call Circuit Specialists at (***)-528-1417
