5 channel usb oscilloscope portable pc-based software
5 Channel USB Oscilloscope Portable PC-Based Software
* Use with electronic teaching equipment
* Acoustic tests and research
* Examine and repair apparatus and appliances
The portable oscilloscope is easily potable and takes its power directly from the USB port no batteries or other external power supply is required. Please note it is only PC and NOT Mac compatible
* 5 channel input and synchronised display
* Measure range automatically with 4 available modes
* Input capture (trigger) function
* Any channel may be set as the source of capture (trigger) signal
* Either rising or falling edge can be set to capture (trigger) signal
* Adjustable capture (trigger) signal level
* Saves data on hard disk and system will automatically summon data when started
BNC connection with universal oscillograph probe
Horizontal 16DIV * vertical 10DIV
800MV, 8V when probe is X10
Vertical baseline adjustable range
Time domain adjustable range
Data record and save capacity
Max data record and save time

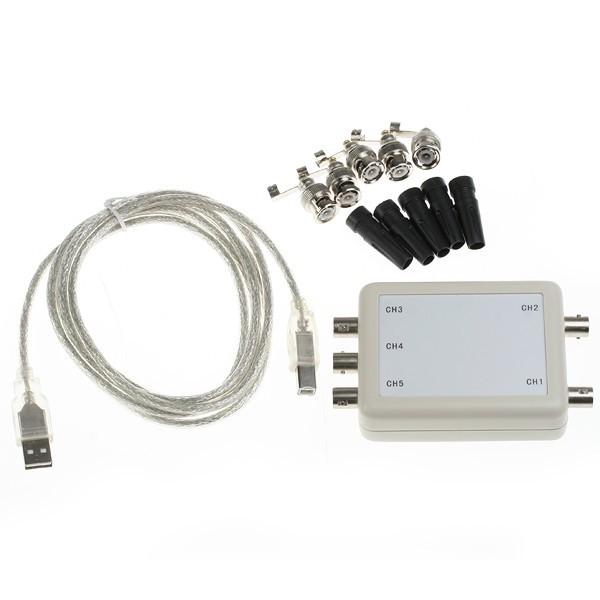

The 5 channel oscilloscope is brand new and boxed and comes with the following accessories:
