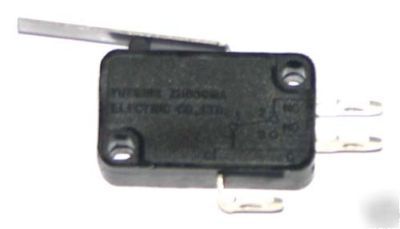

50 15A long lever msw microswitch micro switch AC250V m
50 15A Long Lever MSW Microswitch Micro Switch AC250V M
* Safe, reliable basic switch
* Nice appearance, tight configuration, Characteristic: small contact clearance, quick action, high sensitivity and small operating travel
* Long life, high reliability
* A variety of models with low operating force to high operating force are available
* Adopt thermosetting plastic or thermoplastic
* Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electric motion tool etc
* Operating speed: 0.1mm-1m/s(related with actuator forms)
* Mechanical operating frequency: 60 cycles/min
* Electrical operating frequency: 25 cycles/min
* Insulation resistance: 100 M (500VDC)
* Contact resistance: 30 M (initial value)
* Test voltage: Between terminals of the same polarity: AC1000V, 50/60Hz, 1min; Between current-carrying metal parts and ground (case), and between each terminal and non-current-carrying metal parts: AC3750V, 50/60Hz, 1min
* Vibration resistance: 10-55Hz,1.5mm Double amplitude
* Destruction shock resistance:
OF>0.5N: 1000m/ s2 (approx.100G)max; OF 0.5N: 400m/s2(approx.40G)max;
* Malfunction shock resistance:
OF>0.5N: 200m/ s2 (approx.20G)max; OF 0.5N: 100m/ s2 (approx.10G)max
* Mechanical life span: 1,000,000 cycles
* Electrical life span: 100,000 cycles
Air mail delivery time(only for referenced):
about 10-25 working days to Australia/USA/Canada.
about 15-35 working days to major cities of Europe.
about 20-45 working days to Italy or Eastern Europe/other remote cities.
Guarantee for Exchange - Products can be exchanged within 14
new and unused when return.
Guarantee for Refund - Refund if the product is different from
description given. (refund will be made after receive the return product)
We will try our best to help you solve the problem.
Moreover, if you interested to purchase more than one item/one lot,
you may visit our Store,where can provide over 100 lots of the same item!
Wholesale service email:****@hotmail.com.
We will response you within two working days.
