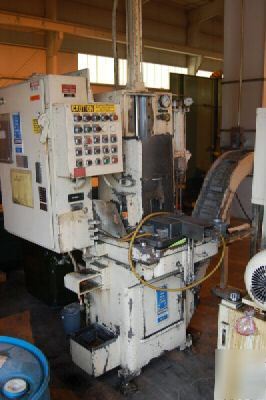

2 ton astro (b&h) vertical hydraulic broach #25106
2 TON ASTRO (B&H) VERTICAL HYDRAULIC BROACH
New 1981, Serial No. 33626-179, Model ABV24-2-70
Tonnage Capacity....................... 2 TONS
Maximum Stroke Length.................. 24"
Ram Travel, Adjustable................. 2" to 26"
Cutting Speed, Variable................ 0 to 70 FPM
Return Speed........................... 140 FPM
Slide Width............................ 4"
Slide Length........................... 36"
Oil Reservoir Capacity................. 80 GALLONS
Coolant Reservoir Capacity............. 20 GALLONS
Hydraulic Motor Horsepower............. 15 HP
Overall Dimensions, W x D.............. 3'10" x 5'6"
Overall Height......................... 9'2"
Weight, Approximately.................. 3000 LBS
