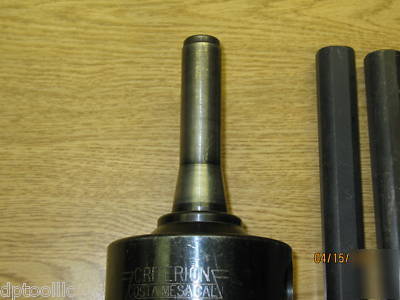

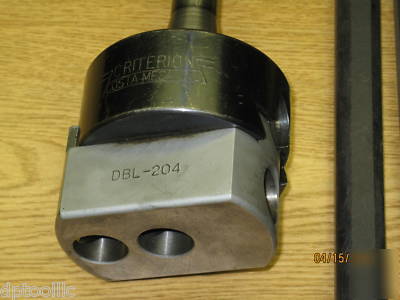

Criterion DBL-204 Boring Head with R8 shank & Tooling
Criterion is one of the finest quality oldest and most respected manufacturers of boring heads and accessories.
A boring head is basically and adjustable tool holder. Its purpose is to bore precision holes in a variety of sizes from already existing holes. The basic boring head is made up of three components the body, the bar holder and the graduated micrometer dial screw.
One division on the dial is a sensitive adjustment permitting controlled adjustments of .0005 or less. All parts of this head are hardened and all working surfaces are ground.
* Factory Part Number: DBL-204E
* Boring Head Size: 4.00 diameter x 4.00 height
* Boring Head Adapter Size: 1-1/2 -18tpi
* Boring Bar Size: 1.00 diameter shank
* Center Hole Minimum Bore: 1/2 (using a boring bar)
* Center Hole Maximum Bore: 4-1/2 (using a 1-1/4 boring bar)
* Outboard Hole Minimum Bore: 3.00 (using a boring bar)
* Outboard Hole Maximum Bore: 7.00 (using a 1-1/4 boring bar)
* Cross Hole Minimum Bore: 6-5/8 (using a boring bar)
* Cross Hole Maximum Bore: 11-3/8 (using a 1-1/4 boring bar)
* Offset of each Hole: 1-5/8
* 1 division of the dial =: .001
* Boring Bar Max. Size: 1.250 on a 1.00 shank
* Factory Selling Price: $649.60 with the shank

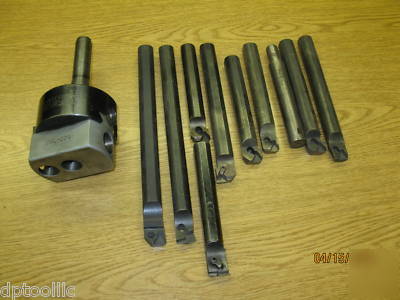

Tooling included with this boring head is
This boring head can also be adapted to other size shanks: 3MT, 4MT, 5MT, Straight Shank sizes of 1 , 1-1/4 , 1-1/2 , 2 , and National taper sizes #30 with draw bar and draw flange, #40 with 5/8-11 draw bar or drive flange, #50 with 1 -8 draw bar or drive flange, R8 and a #9 Browne & Sharpe with -13 draw bar.
