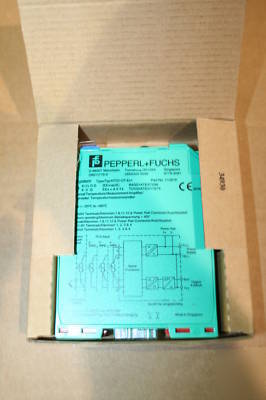

PEPPERL+FUCHS 1-Channel Universal Temperature Converter
24 VDC supply - Power Rail compatible
Current source output 4-20 mA
Internal/external cold junction compensation
Programmable input/output characteristic curve
Suitable for Division 2/Zone 2 mounting
Power Supply: Power Rail or terminals 11+, 12-
Input (Intrinsically Safe): Terminals 1, 2, 3 and 4
Suitable for: Pt100, Ni100, thermocouples type B, E, J, K, L, N, R, S or T (IEC584). Configuration via programming socket.
Lead Resistance: <= 50 Ohm per lead
Output (Not Intrinsically Safe): Terminals 7-, 8+
Current Output: 4-20 mA; 20.5 mA at input signal overrange
Calibrated Accuracy for Pt. 100: 0.01% of measuring value in C + 0.05% of span + 0.1 C (4-Wire Connection)
Calibrated Accuracy for Thermocouple: 0.05% of measuring value in C + 0.05% of span + 1 C. This includes 0.8 C error of the cold junction compensation.
Influence of Supply: <= 0.01% of span
Influence of Load: <= 0.001% of value per 100 Ohm
4. BAS 01 ATEX 7256, EX II (1) G D [EEx ia] IIC
5. T V 02 ATEX 1797X, EX II 3 G EEx nA II T4
Dimension: 4.21" x 0.79" x 4.53"
Ambient Temperature Range: -4 F to +140 F
