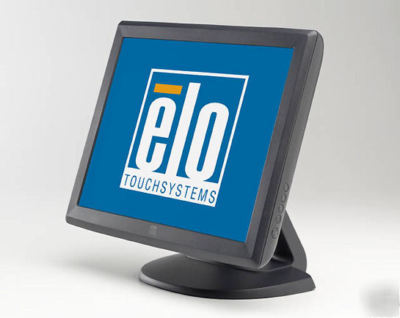

Elo 17A2 17" all in one lcd desktop touchcomputer
Expanded versatility, bigger screen, and improved serviceability, all in a compact design: the 17A2 17" LCD all-in-one touchcomputer provides an attractive ultra-compact 17" touch solution that can fit virtually anywhere in any point-of-service environment.
The 17A2 touchcomputer with dual video display capability includes a choice of touch technologies: AccuTouch five-wire resistive, IntelliTouch surface acoustic wave and the company's innovative Acoustic Pulse Recognition (APR) that blends the benefits of all three. Elo touch technologies provide stable, durable touch options that are resistant to scratches and liquids and can be activated in a variety of ways. Also, the 17A2 comes with 1280 x 1024 SXGA resolution and 5 x 4 aspect ratio to display clear, precise graphics for improved readability.
The silent, fanless, spill- and tamper-resistant design of the 17A2 and its compact integrated peripherals, make this touchcomputer an ideal choice for point-of-sale, point-of-service, loyalty systems, kiosk information systems, medical and light industrial, airport security, home control, and Internet access points.
* Saves space, with the same footprint as a standard 17" LCD display
Available with AccuTouch five-wire resistive, IntelliTouch surface-wave, or Acoustic Pulse Recognition touch technology
Resists dirt, dust and liquid intrusion
Variety of optional field installable and replaceable point-of-service peripherals
* Peripherals installable in the field for easy upgrades and added functionality
Microsoft Windows XP Professional, WEPOS or XP Embedded operating system support
* Cable management system conceals cables from view providing additional security from tampering
* Robust tie-downs for strain relief
User accessible hard drive mounted in slide-out drawer
Easy access and quick upgrades or repairs, lockable with one screw
Intel GMA 900 up to 128MB 1 shared
1 GB DDR2 standard on 1 of 2 slots
1 x 2.5" 80 GB SATA hard drive 3
USB fingerprint reader: 3 W max.
Wireless card/TV tuner: 5 W max.
Total power drawn with all possible peripherals: 105 W max.
* USB biometric fingerprint reader
* Speaker bar (two 3-watt speakers)
* with omni-directional barcode scanner, or
* with single line barcode scanner, or
* without barcode scanner
Actual without stand, including HDD and DVD: 14.9 lb (6.8 kg)
Base unit: 17.9" (455 mm) x 20.1" (510 mm) x 9.6" (245 mm)
Unit with peripherals: 20.5" (520 mm) x 20.1" (510 mm) x 9.6" (245 mm)
Accessible hard disk drive, compact flash, miniPCI card
1280 x 1024 at 60 Hz (native); scalar support for 1024 x 768 or 800 x 600 at 60 Hz
Acoustic Pulse Recognition: 276 nits
Horizontal: 80 or 160 total
