Microcontroller fm broadcast encoder stereo (exclusive)
Visit our website for others our product at
THIS IS EXCLUSIVE VERSION OF OUR STEREO ENCODER AND WILL INCLUDED FOLLOWING ITEMS:

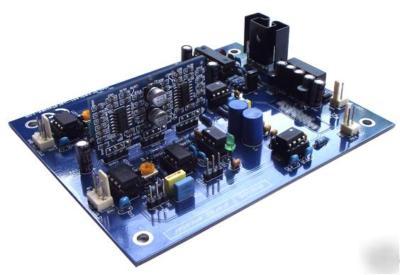

1. One unit Assembled and tested of Stereo Encoder with LPF
2. One pieces of Stereo Encoder PCB for DIY projects
4. Access exclusively to Firmware code
Based microcomputer with combines digital and analog techniques make this encoder produce clean sound and perfect separation without any adjustment.
To test Pilot phase for this encoder, out of phase 50 Hz tone is used. This is the classic L Equals Minus R signal and will produce a pattern on an oscilloscope connected to the composite output as shown on following picture:
Pilot Phase with Test tone 50Hz
High Quality Elliptical FDNR Filter
Eleptical active filter FDNR (Frequency Dependency Negative Resistence)
Balanced / Unbalanced audio input (Line Receiver use INA137PA)
IMD and beats. >60 db (no clipping)
Pre emphasis None, 50us, 75us (switchable)
The frequency response stays between 0,5dB from 30Hz to 15 KHz whilst the attenuation at 19KHz is more than 45dB.
