PI5L200 precision wide bandwidth lanswitch quad 2:1 mux

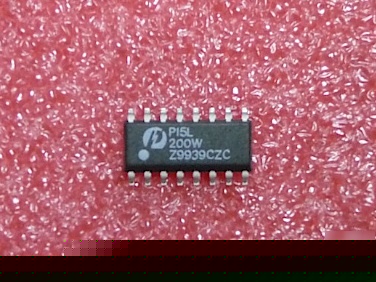

PI5L200 Precision Wide Bandwidth LanSwitch Quad 2:1 Mux
Pericom Semiconductor s PI5L200 is a Rail-to-Rail Quad 2:1 multiplexer/demultiplexer LanSwitch with 3-state outputs. The On- Resistance typically varies from 5 ohms to 7 ohms with data inputs of 0V to 5V. Generally, this part can be used to replace mechanical relays in low voltage (3.3V/5V systems) LAN applications.
With a wide bandwidth of 135 MHz, the PI5L200 can switch Fast Ethernet and ATM25 signals. Into 100-ohm UTP cables, the switch distortion is typically less than two percent. Crosstalk @30 MHz is 70dB. The PI5L200 operates from a single 3.3V/5V supply and interface to TTL logic.
Applications 10/100Base-TX/T4 100VG-AnyLAN Token Ring 4/16 Mbps ATM25 NIC Adapter and Hubs SONETOCI 51.8Mbps T1/E1
