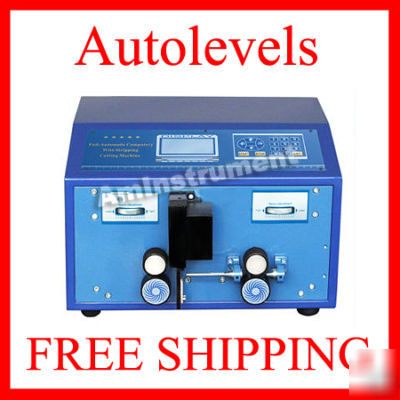

AWG7-30# wire stripper cutting stripping machine strip
AWG7#-30#Wire Cutting and Stripping Machine
* Hundred specification data could be stored and available for quick selection
* Unique middle stripping system in each program to strip tens sections in middle
* Set wire size, cutting length, stripping length and production quantity as desired
* LCD display in English and easy operation
* Wire Type : Teflon wire, braided wire, silicon rubber wire, glass fiber wire, PVC coated wire, rubber coated wire, sheathed wire (diameter < 4 mm) and bare wire
* Processable Wire Size : AWG7# (0.1443 inch , 10.55mm2) 30# (0.01 inch ,0.0507mm2)
* Stripping Length : 0.1-35 mm (optional both wire head and wire tail 80mm, 10 or 18 sections could be stripped in the middle)
* Transfer Wheels : high quality steel wheel and common rubber wheel
* Knife: high quality tungsten steel and alloy tool stee
* Wire Size Range : multiple core wire < 12 mm2, single core wire < 6 mm2
* Length of Wire : max. 10 m ( optional max. 100 m) , min. 1 m
* Cutting Capacity : L = 100 mm, 12,000 pcs/hr.
* Stripping & Cutting Capacity: L = 80mm, stripped both head and tail 5 mm, 2700 pcs/hr. (full stripping, half stripping, no stripping, single end stripping, both ends stripping)
* Cutting Tolerance: (0.2 0.002 L)mm
* Strpped Wire Head Length: 0.1-50mm
* Process Speed: L=100mm,300pcs/min
* Cutting Speed: 1 6 adjustable
* Build in 9 middle-strip function in addition to end-strip
* Power Supply: 110V 60Hz / 220-240V 50Hz
* Overall Size: 430mm x 450mm x 250mm
* Machine Net Weight: 68 lbs (31kg)
* Packing Weight: 72 lbs (33kg)
* Support complete strip, half strip and middle-strip
* 4 tubes of different sizes to restrict wires( 3.3mm 5mm 8mm 10mm)
* 1 extra photoelectric sensor for replacement
* 4 different size hexagonal wrenches
* 1 disc with user's manual included
* 1 extra Wire Straightenter
* 2 extra blades for replacement
