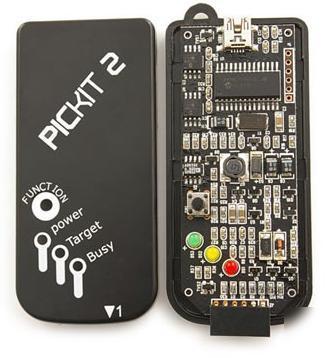

Diy pickit 2 PICKIT2 microchip pic programmer debugger
PICKIT2 PICKIT Microchip Programmer PIC Starter Kit
Product summary from Microchip's website:
The PICkit 2 Starter Kit is a low-cost development kit with an easy to use interface for programming many of Microchip s baseline, midrange and PIC18F families of Flash memory microcontrollers. This starter kit is designed to help the user get up to speed quickly using PIC microcontrollers
Easy to use Windows programming interface for programming many of Microchip s Flash family of microcontrollers
Microchip s Tips n Tricks Booklets provides efficient, low-cost design techniques.
Current PICkit 2 Programming Support (Mar 2007) Bold font indicates new parts supported in Application v2.20 and device file v1.20
PICkit 2 MPLAB 7.51 & 7.52 Support
PIC16F684*, 685*, 687*, 688*, 689*, 690*
These devices require an ICD header board to enable debugging with them Programming only
For the most current MPLAB support information, see Readme for PICkit 2 in the Readmes subdirectory of MPLAB IDE.
(Typically C:\Program Files\Microchip\MPLAB IDE\Readmes)
Notice: (please read this carefully for some often asked questions)
1 Device Support List (For reference only) (IDE 7.62, for latest version please check your readme file)
* These devices require a header board to be able to debug the device. See the Header Board Specification (DS51292) for more information. This document is available in the Downloads section of the PICkit 2 web page.
RJ11 to 6-pin flat cables 1pcs ;
