Esec model 8003 high performance dicing saw
ESEC Model 8003 High Performance Dicing Saw Used
Model/Part No:8003 Our Item ID: 5919

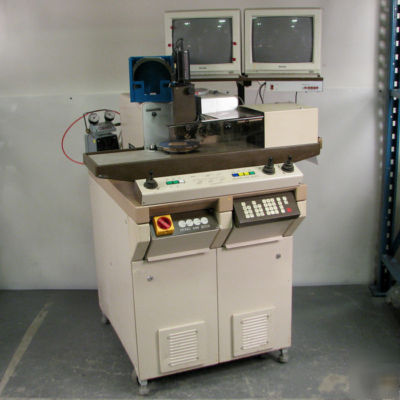

Includes: (1) ESEC High Performance Dicing Saw and accessories pictured.
ESEC Model 8003 High Performance Dicing Saw This unit also has an operating manual with it, it is sold with all accessories pictured.
The Thermocarbon ESEC 8003 is a high performance, multi-processor, fully programmable, precision wafer dicing saw. Based on dependable & accurate swiss mechanical features including:
-Precision control in Index, Rotation, & Stroke
-Advanced color camera & display system for precision measurements
-All cut parameters continuously displayed during cut
-All features completely programmable
-continuous memory for all operating parameters & programs
Although this saw is extremely flexible & can be programmed to cut an unlimited variety of patterns, it is exceptionally easy to use and can be used in a production cutting environment.
The programming system allows you to set up cutting patterns of almost unlimited complexity with ease. Both index & rotation can be taught to the system. Dynamic compensation allows the user to correct for cumulative sub-micron drift in the materials being cut.
Advanced interlocks & features make the saw both easy & safe to use. These features include: auto vacuum, air pressure, over-temp, & vacuum loss detection, lighted emergency stop for low light operation, & extensive logic checks in the ROM based embedded software system.
Wafer Thickness: 10-5000 microns
Dice Blade RPM: 15,000 to 45,000 RPM
Rotation Angle: 0.01 to 165 degrees
Voltage: 208-240 VAC +/-10 percent, 50/60 Hz max.
Air Pressure (air free of moisture and oil) 4.5 to 6 bar (64 to 85 psi)
Item Tested?: Partially TestedPhysical Condition: Good; Working Condition: Not Fully Test, but Powers Up0 | 0x 0x0 | 1
