Hp/agilent 16822A-016-101-103-111 68-channel portable l
HP/Agilent 16822A-016-101-103-111

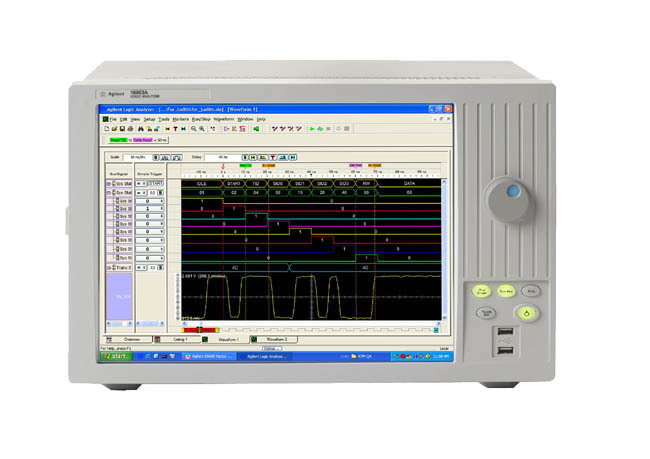

HP/Agilent 16822A 68-Channel Portable Logic Analyzer w/ options 016/101/103/111
HP/Agilent 16822A Standard Specifications
* 15-inch (38.1 cm) color display with touch screen available
* 68-channel portable logic analyzer with up to 32 M acquisition memory depth
* Comprehensive single-ended signal support, threshold is adjustable in -5 V to 5 V (10 mV increments)
* 48-channel pattern generator with up to 300 MVector/s speed and 16 M vector depth
* 1.0 GHz / 500 MHz (half / full-channel) conventional timing with deep memory
16822A Option Configuration - 016/103
16822A-016 Increase acquisition memory depth to 16M
16800A-103 Front Panel with 15 inch display and touchscreen
Additional information and photos of the 16822A available upon request.
