New namco cylindicator prox. sensor cat. no.EE230-33220

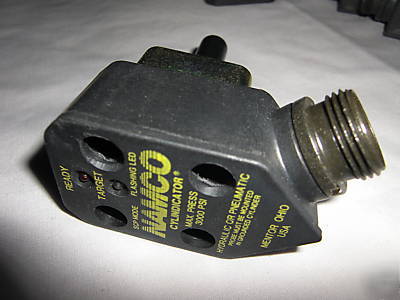

NAMCO Cylindicator Prox. Sensor
The NAMCO Cylindicator proximity sensor is a 2-wire AC/DC switch with Short Circuit Protection and Weld Field Immunity standard. The sensor is totally self-contained, completely epoxy encapsulated, and features 100% solid-state circuitry.
NAMCO EE230 sensors are suitable for direct connection to most common types of control systems, including:
* Programmable controllers
* Custom microprocessors
* Output devices (e.g. Solenoids)
* Ambient Temp.: -4F to 158F
* Switching differential: 10%
* Supply voltage: (50/60Hz) 20-230V AC/DC
* Voltage drop: (Across conducting sensor) 10V
* Inrush current: (rms 1 cycle) 3Amp
* Short circuit protection: Yes
