Abb solid state timer ssac 5-600M sec.

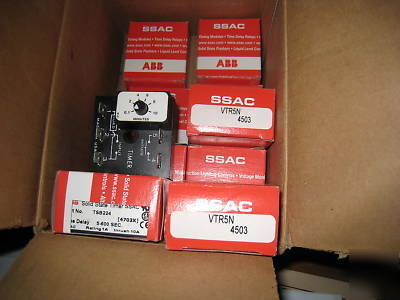

Your good fortune these units are brand new in the box and are selling for half price.
They are getting very hard to find since they are out of production.
Get all six for just $90.00 including the adjustable timer modules.
These units normally sell for $35.00 a block and $10.00 for the adjustable timer mods each.
The description below is for the TSB series timer block.
The TSB Series is a totally solid state delay on break timing module. The TSB is available with a fixed or external
adjust time delay. Time Delays from .05 to 600 seconds, in 4 standard ranges, cover over 90% of all OEM and
commercial appliance timing applications. The repeat accuracy of its analog circuitry is +/-2%. A convenient
adjustment accessory called a VTR plugs onto the adjustment terminals to provide onboard adjustment.
Operating voltages is 24 volts AC, (120, or 230 VAC are available). The TSB's 1A steady state, 10A rated solid state output is
perfect for direct control of solenoids, contactors, relays, lamps, buzzers, and small heaters. The TSB can be
surface mounted with a single screw, or snapped on 35 mm DIN track using the P1023-20 adaptor.
Input voltage must be applied to the input before and during timing. Upon closure of the initiate switch, the
output is energized. The time delay begins when the initiate switch is opened. The output remains energized
during timing. At the end of the time delay, the output is de-energized. The output will energize if the initiate switch
is closed when input voltage is applied. Reset: Reclosing the initiate switch during timing
resets the time delay. Loss of input voltage resets the output but does not reset the time delay.
