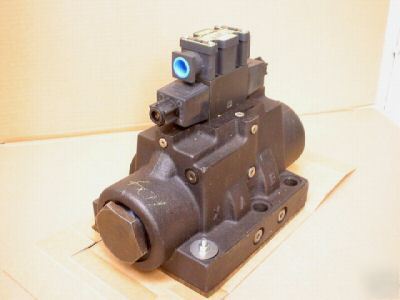

Parker D101VW w/parker D1VW directional control valve
The D101VW is a five-chamber, pilot operated, solenoid controlled directional control valve, 3000 max psi. It is available in 2 or 3-position styles. They are manifold or subplate mounted valves, which conform to NFPA's D10/CETOP 10 mounting pattern.
Hardened spools provide long life
Fast response option available
Wide variety of voltages and electrical connection options
Explosion proof availability
No tools required for coil removal
Repairable manual override for easy seal replacement
The D1VW30DNYCF is a 2-position detent, 4-chamber, direct operated, wet armature, solenoid controlled, nitrile seal, 120/60 - 110/50 VAC directional control valve, P-A-B max pressure 5000 psi, tank max pressure 1500 psi. Conforms to NFPA's D03/CETOP 3 mounting patterns.
