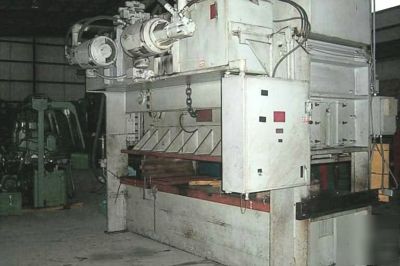

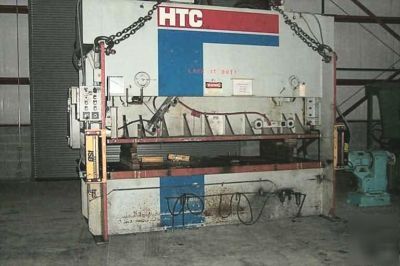

Used 200 ton htc-pacific hydraulic straight side press
(1) Used 200 Ton HTC-PACIFIC Hydraulic Straight Side Press,
Model 200MS, S/N 3892891, New 1973
Tonnage Capacity Forming:......................................................................200 Tons
- Punching:..................................................................... 134 Tons
Stroke: ............................................................................................7"
Open Height: ............................................................................................15"
Closed Height:............................................................................................ 8"
Area of Bed: .............................................................................................125" L-R x 42" F-B
Area of Ram: ............................................................................................. 122" L-R x 48" F-B
Area of Windows:...................................................................................... 37" L-R x 18" High
Distance Floor to Top of Bed:................................................................... 33"
Speeds Approach:.....................................................................................0.9" / Sec.
- Press: .......................................................................................... 0.38" / Sec.
- Return:............................................................................................1.9" / Sec.
Motors: ............................................................................................ (2) 30 HP 3/60
Overall Dimensions (Approx.):.................................................................. 150" L-R x 93" F-B x 133" H
Weight (Est.): ........................................................................................... 46,000 Lbs.

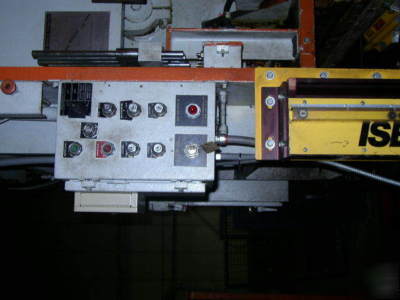

Hand/Foot; Run Station Select 1/2/1&2
Approach Low/High; Press Low/High Stop; Start
Auto Feed Cycle Set/Off/Auto On
Off/Inch/SS Manual Return/SS Auto Return
Pacific High-Speed Hydraulic System
