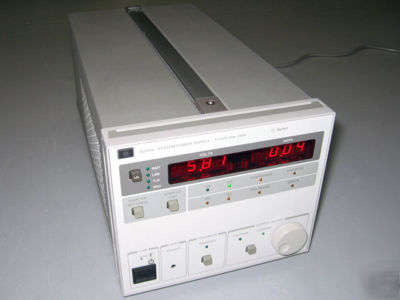

Hp agilent 6033A 20V 30A 200W dc power supply
HP AGILENT 6033A 20V 30A 200W DC POWER SUPPLY
* Output Ratings: 0 to 20 V; 0 to 30 A
* HP-IB programming of voltage and current
* Measured voltage and current readback over the HP-IB
* SCPI (Standard Commands for Programmable Instruments)
* Auto-parallel up to 2 units
* Outputs can be connected in series
* Overtemperature protection
* Programmable accuracy at 25 C 5 C: Voltage: 0.035% + 9 mV; Current: 0.15% + 20 mA
* Modulation (analog programming of output voltage and current): Analog programming inputs and monitoring terminals are provided on the rear panel in addition to the HP-IB programming capabilities
* AC Input Power: 120 Vac; 6.5 A
