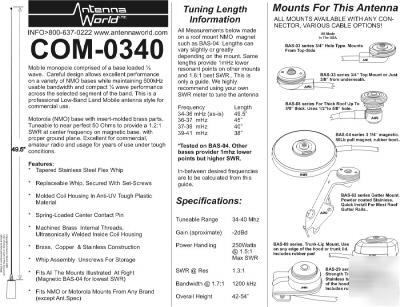

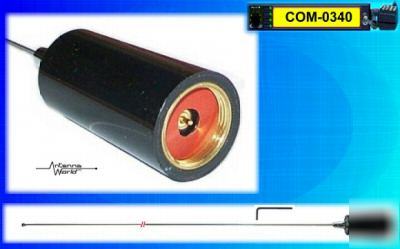

Low band antenna 34-40 mhz motorola nmo mount type 034
Mobile monopole comprised of a base loaded wave.. Careful design allows excellent performance on a variety of NMO bases while maintaining 600kHz usable bandwidth and compact wave performance across the selected segment of the band. This is a professional Low-Band Land Mobile antenna style for commercial use.
Motorola (NMO) base with insert-molded brass parts.. Tuneable to near perfect 50 Ohms to provide a 1.2:1 SWR at center frequency on magnetic base, with proper ground plane. Excellent for commercial, amateur radio and usage for years of use under tough conditions.
* Tapered Stainless Steel Flex Whip
* Replaceable Whip, Secured With Set-Screws
* Molded Coil Housing In Anti-UV Tough Plastic Material
* Spring-Loaded Center Contact Pin
* Machined Brass Internal Threads, Ultrasonically Welded Inside Coil Housing
* Brass, Copper & Stainless Construction
* Whip Assembly Unscrews For Storage
* Fits All The Mounts Illustrated At Right
(Magnetic BAS-04 for lowest SWR)
* Fits NMO or Motorola Mounts From Any Brand (except Ant.Spec)
