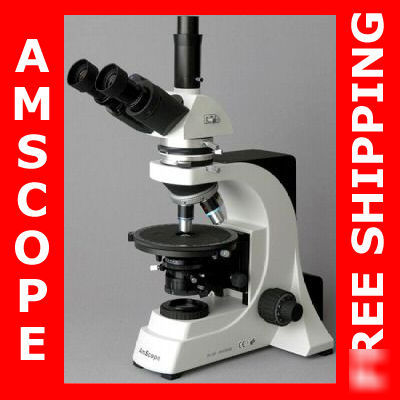

Trinocular infinity polarizing microscope 40X-600X
Brand Name: AmScope Model No: PZ300T Retail Value: $9,000
* A high quality professional infinity polarizing microscope with USB digital image system!
* Perfect for geology, petrology, mineralogy, toxicology, pharmaceutics, and forensic medicine!
* 30 inclined 360 rotatable trinocular head
* Four magnification settings, 40X, 100X, 400X and 600X
* 30 mm PL high-eyepoint 10X eyepieces
* Four Infinity corrected PLAN distressing objectives, 4X, 10X, 40X and 60X, for super quality images
* 360 rotatable stage with locking control
* Koehler illumination system with swing type achromatic condenser
* Built-in focusable Bertrand lens on rotatable disc with centering controls
* Built-in analyzer with capability for removal from optical path
* Coaxial coarse and fine focusing system
* Focusing tension control mechanism
* Adjustable diopters on both eye tubes
* Graduated in 1 degree for 90 degrees
* 360 degree rotatable polarizer able to be removed from optical path and lock positions
* Brightfield/polarizing selectable knob for easily changing light from brightfield to polarization
* Super widefield high eye-point 10x eyepieces with 22 mm field of view (PL 10x/22mm)
* High-eyepoint optics for an easy observation, especially for eyeglass wearers
* Reversed quadruple nosepiece - the design allowing easier access to slides
* Objective centering screws on nosepiece for precise alignment
* 50mm - 80mm adjustable interpupillary distance (the distance between two eyes)
* Sub-stage condenser on swing with alignment control and iris diaphragm
* Rack & pinion steel gears for easy and better condenser movement
* 45mm Blue filter for base illumination
* Large fully rotatable round stage with ball bearing movement, 160mm diameter with graduation marks every 1 degree for the full 360 degrees
* Stage rotation lock screw and detachable stage slide clips
* Tension-adjustable coarse focusing
* Adjustable lock ring stopper to limit coarse range to protect slides
* 30W intensity-variable halogen transmitted illumination
* Spare bulb, fuse, bottle of immersion oil and dust cover included
* Optional PLAN objectives: 20X, 100XS (oil)
* Unbeatable lowest price guaranteed or difference back!
* Eyepieces: PLAN10X (22mm field of view) flat-field eyepieces with eye-guard and PL10X22mm with reticle
* Objectives: infinity Plan distressing objectives: 4XS, 10XS, 40XS, 60XS
* Head: 30 inclined Gemel type of trinocular head
* Midst Head: build-in analyzer and Bertrand lens, rotating range of analyzer: 90 , a dose value of vernier 6', being able to shift out the optical way. With Bertrand lens diverter and focusing handwheel, centering adjustment
* Compensator: plate (f18mm, first-order red, light path aberration: 551nm); /4 plate (f18mm, light path aberration: 147.3nm); Quartzose chock (12 28mm, I - IV)
* Focusing System: coaxial coarse & fine controls
* Coarse Adjustment Travel Range: 28mm. (Stage Movement Distance Up/Down)
* Fine Adjustment Division: 0.002mm
* Stage: rotatable circular, 360 rotatable circular worktable, a dose value of mark 1, a dose value of vernier 6'
* Condenser: NA1.2/0.22 swing type achromatic condenser
* Polarizer: 360 (0 /90 /180 /270 four type graduation) rotatable vibration, apparatus with locking, being able to shift out the optical way
* Objective Centering Wrench : 1.5 mm
* Camera/Video Port: 23mm universal/standard phototube
* Illumination: Koehler illuminator system, 6V/30W halogen bulb, adjustable brightness, CE certified
* Power Supply: 90V~240V fluctuate of voltage
* Total Overall Height of Microscope: 485mm
* One 30 Inclined Gemel Type Trinocular Head
* One Microscope Body with Frame, Base and Koehler Illumination System
* Four High Quality Infinity Plan Distressing Objectives: 4XS, 10XS, 40XS, 60XS
* One Pair of Extreme Widefield Eyepieces, PL10X with Reticle
