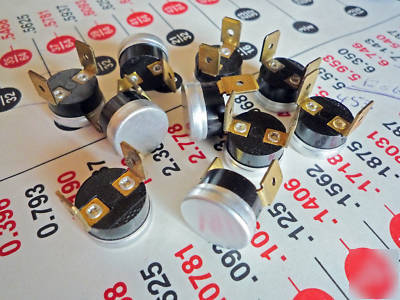

10 pcs. 140°f bi-metal thermostat
This is a lot of 10 pcs. Thermodisc Snap-Action Temperature Control / Safety Limit. 36T series - Part # 36T01 / L140-15F.
The 36T series of 1/2 inch bimetal thermostats offers proven reliability in a compact, versatile, cost-effective design. The snap action of the bimetal disc provides high-speed contact separation resulting in excellent life cycle characteristics at electrical loads up to 15 amps at 120VAC and 10 amps at 250VAC.
Normally closed, open on temperature rise.
Life Cycles: Over 100,000 cycles under rated load
Maximum Ambient Working Temperature: 220 C
Contact Resistance: 50 mOhm or less
* Closes at 140 F, Open ( -15 F ) at 125 F .
* dia. 5/8" (16mm) x height 3/4" (19mm)
* Thermostat has two male 6x8 mm quick connects which can also be soldered to.
