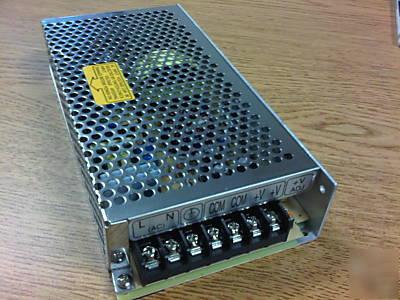

12VDC 8.3AMP regulated switchable power supply
INPUT VOLTAGE RANGE: 88-132VAC; 176-264VAC SELECTABLE BY SWITCH
INRUSH CURRENT: COLD START, 25A/115VAC, 50A/230VAC
OUTPUT ADDUSTMENT RANGE: 10% RATED OUTPUT VOLTAGE
OUTPUT OVER LOAD PROTECTION: 105%~ 150% RATED OUTPUT VOLTAGE
OUTPUT SHORT CIRCUIT PROTECTION: HICCUP MODE, AUTO RECOVERY
RISE, HOLD UP TIME: 50mS, 20 mS AT FULL LOAD (TYPICAL)
OPERATING TEMPERATURE RANGE: 0 C TO +50 C @ 100% LOAD, -10 C@ 80% LOAD, +60 C @ 60% LOAD
STORAGE TEMPERATURE: -40 C TO +85 C, 0-95% RH (NON -CONDENSING)
SAFETY STANDARDS: UL60950-1, TUV EN60950-1
EMC STANDARDS: EN55022 CLASS B, EN61000-3-2,3 , EN61000-4-2,3,4,5,6,8,11 , ENV50204
COOLING METHOD: FREE AIR CONVECTION
