2,500 LB CAPACITY NTEP SINGLE-ENDED SHEAR BEAM LOAD CELL

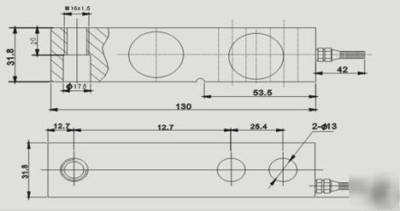

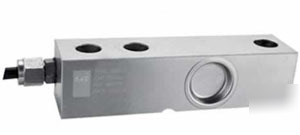

2,500Lb small envelope single-ended shearbeam
Low sensitivity to axial loads
Temperature compensation,both zero and span
"Threaded" load hole configuration
Compatible with international standard fixings
Rated output......................................3mV/V 0.25%
Non-linearity.............................................0.03%FSO
Hysteresis................................................0.03%FSO
Non-repeatability.......................................0.02%FSO
Creep in 20minutes....................................0.03%FSO
Temperature effect span...................0.015%FSO/10 C
Temperature effect zero.....................0.026%FSO/10 C
Compensated temperature range...............-10 C~40 C
Operating temperature range ....................-40 C~80 C
Zero balance....................................................... 1%
Input resistance.....................................385 15 Ohms
Output resistance....................................350 3 Ohms
Safe overload....................................................150%
Ultimate overload...............................................300%
Excitation voltage............................................10VDC
Maximum excitation voltage ............................15VDC
Insulation resistance........................>2000 Meg-Ohms
Environmental protection.....................................IP67
Thread size .............................................1/2-20 UNF
Cable length........................................................15ft
Red............................+ Excitation
Black..........................- Excitation
Green..............................+ Signal
White...............................- Signal
