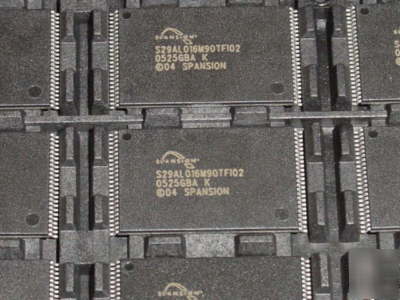

8 pcs. spansion# S29AL016M90TFI020, 16 mbit (2M x 8 bit
The following item has just been added to our store in a larger qty. This item is for 8 pcs. only!
16 MBit (2M x 8 Bit/1M x 16 Bit) 3.0 V Only Boot Sector Flash Memory Featuring MirrorBit Technology
3 V for read, erase, and program operations
Manufactured on 0.23 m MirrorBitTM process
SecSiTM (Secured Silicon) Sector region
128-word/256-byte sector for permanent, secure
identification through an 8-word/16-byte random
Electronic Serial Number, accessible through a
May be programmed and locked at the factory or by
One 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and thirtyone
One 8 Kword, two 4 Kword, one 16 Kword, and thirtyone
Compatibility with JEDEC standards
Provides pinout and software compatibility for singlepower
supply flash, and superior inadvertent write
Top or bottom boot block configurations available
100,000 erase cycle typical per sector
20-year typical data retention
0.7 s typical sector erase time
Low power consumption (typical values at 5 MHz)
400 nA standby mode current
40 mA program/erase current
400 nA Automatic Sleep mode current
Program Suspend & Resume: read other sectors
before programming operation is completed
Erase Suspend & Resume: read/program other
sectors before an erase operation is completed
Data# polling & toggle bits provide status
Unlock Bypass Program command reduces overall
multiple-word programming time
CFI (Common Flash Interface) compliant: allows host
system to identify and accommodate multiple flash
Sector Protection: hardware-level method of
preventing write operations within a sector
Temporary Sector Unprotect: V
changing code in locked sectors
Hardware reset input (RESET#) resets device
Ready/Busy# output (RY/BY#) indicates program or
