Barber colman t.a.c MS40-7043-mp, MS407043MP actuator

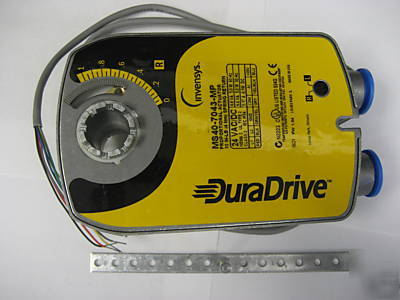

BARBER COLMAN (SIEBE) MS40-7043-MP, MS407043MP
TAC DuraDrive Direct Coupled Actuators are
designed to be used in both damper and valve control
applications. The following general instructions are for
damper applications. Refer to the Applicable Literature
The MS4X-7XX3 series spring return actuators provide
proportional modulation control of dampers and valves
Proportional models controlled by 6-9 Vdc, 2-10
Vdc, or 4-20 mA with the addition of a 500 ohm
Rugged die-case housings rated for NEMA 2 / IP54
Optional built-in auxiliary switch to provide for
Visual position indicator provided
Provides true mechanical clockwise or
counterclockwise spring return operation for reliable
fail safe application and positive close-off in air tight
MS40-7043-MPX models controlled by 6-9 Vdc with
auxiliary 20 Vdc power supply provides power to
controllers, replacing MP-5XXX/MPR-5XXX
Direct mount to round or square damper shafts
Switch provided for selection of direct or reverse
MS4X-7153 series actuators can be doublemounted
(gang mounting) to accommodate high
torque application requirements
