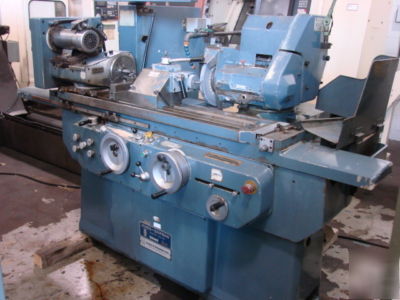

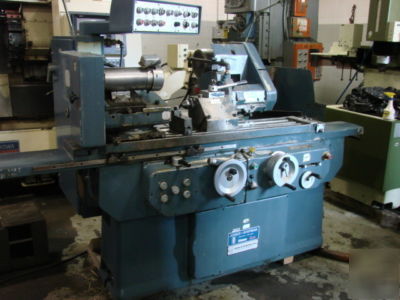

Jones & shipman 10" x 24" model 1076 universal od grind
MACHINE SERIAL NUMBER BO-14309
Maximum Length Between Centers: 27"
Maximum Workpiece Weight Between Centers: 220 lbs.
Table Swivel Included Angle (CW: 16 Deg.
Table Swivel Included Angle (CCW): 18 Deg.
No. & Range of Workhead Speeds (6): 40, 60, 090, 140, 210, 320 RPM
Table Travel Speeds (Variable): 3-144 IPM
Travel per Revolution of Handwheel: 0.50"
Crossfeed Handwheel Gradations: .0002"
Swivel of Wheelhead: 360 Degrees
Grinding Wheel for OD Grinding: 12" x 1" x 5"
Approximate Floor Space: 126" x 54"
