Nema 23 stepping, stepper, step motor 4023-833

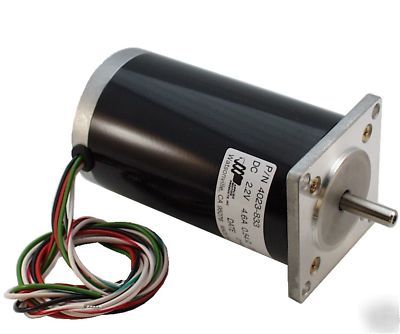

Applied Motion Products 4023-833 stepper motor.
The 4023-833 is a 1.8deg (200 steps/revolution) NEMA 23 step motor with 212 oz-in holding torque ( 150 N-cm ). Six wires 19" long allow connection to both unipolar and bipolar drivers. When connected as bipolar-series to bipolar driver the holding torque can be as high as 212 oz-in. This is very low inductance motor so it will perform excellently in any microstepping and fast application. The shaft is standard 0.25" diameter ( 6.35mm) and 0.75" (19mm) long.
Motor is rated 4.6A for unipolar driver and 3.25A for bipolar driver in bipolar-series configuration.
We recommend to use a DS335 Microstepping Driver with this motor in bipolar-series connection.
To fully utilize this excellent motor we recommend higher voltage driver and power supply with minimum of 24Vdc.
Data sheet and connection diagram: http:// /public_docs/4023-833.pdf
Manufactured by Applied Mition Products, Inc.
This is a LIMITED TIME offer. We have only few cases left, so hurry up!
Use it for your CNC machine or robotic project and save money.
