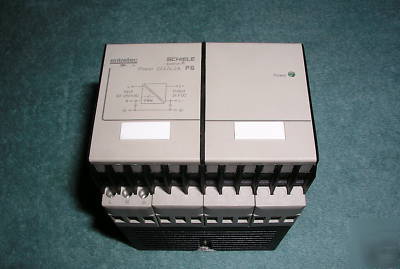

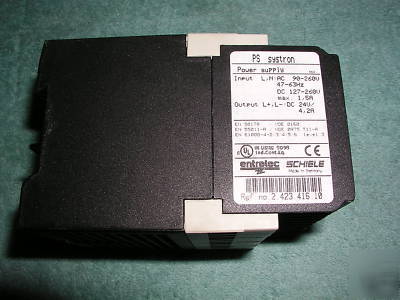

New entrelec systron ps 24 volt dc power supply 4.2 amp
* DIN Rail mount compact modules
* UL, listed, EN 50178 (VDE 0160), CE Marked
* Short-circuit and overload proof
* Supply voltage = 90-260 VAC, 47-63 Hz, 127-260 VDC
* Output load hold time = With input voltage drop out, min. 10 ms at 100% load (90 VAC)
* Input current at nominal load = Max. 1.5 A (90 VAC)/typ. 1.1 A (115 VAC)/0.52 A (230 VAC)
* Inrush current 25 C ( 2 ms) = 40 A (260 V)
* Internal input fuse = 2 A (slow blow)
* Output voltage = 24 V DC 3 %
* Output current / power at... T 55C & Vin = 90-260 VAC = 4.2 A, Vin = 127-260 VDC = 4.2 A
* Residual ripple / noise max. = 200 mVpp
* Deviation of output with input change max. = 0.05 %
* Deviation of output with static load change max. = 0.5 %
* Deviation of output with dynamic load change max. = 5 %
* Short circuit protection = overcurrent switch off with automatic restart
* Overload protection = overtemperature and overcurrent switch off
* Reset after thermal overload = disconnection of AC power input min. 30 s
* Protection against contact = Terminals IP 20, Housing IP 20
* Efficiency (nominal load) = 77...85 % (90...260 V AC)
* Status indication = green LED, power OK
* Operating temperature = 0-55C
* Storage temperature = -25 to +75C
* Terminals = screw terminals, 2 x 14 AWG (2.5 mm2)
* Dimensions (W x H x D) = 3.54 x 3.07 x 4.72" (90 x 78 x 120 mm)
* Mounting hints = Normal position: horizontal onto DIN rail. Spacing to other modules: left side min. 1 cm, vertical distances min. 5 cm
This came in a lot of new spare parts so it has a couple of tiny light cosmetic marks on the body but it is otherwise spotless.
