Rfmd/umc vco 1900MHZ-2000MHZ, umv-1950-R16-g, rohs

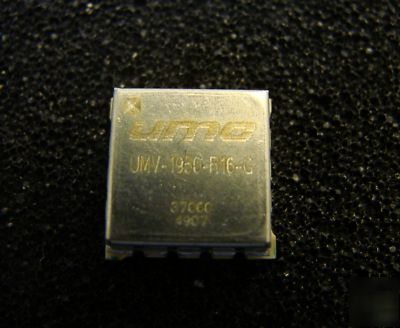

This is one piece of New RFMD/UMC (Universal Microwavr Corporation) VCO, 1900MHZ to 2000MHZ, Part Number: UMV-1950-R16-G in R16 Package (0.5"x0.5"x0.18"). RoHS.
* Frequency Range: 1900MHz to 2000MHz;
* Phase Noise: -107dBc/HZ at 10KHz offset;
* Tuning Sensitivity: 36MHz (avg);
* 3-dB Modulation Bandwidth: 1000KHz
* Pulling: < 1MHz (12dB return Loss);
http://rfbayinc.com/Data_Sheet/VCO/UMV-1950-R16-G.pdf
